ABOUT US

Orbital is the leading supplier of warped and twisted yarns in Europe. Over the last 25 years we have consistently invested in state of the art warping and twisting processes. We're dedicated to technical innovation and offer a vast range of products that enable our customers to push forward the boundaries of technical textile products processing.

We have followed the development of the European textile industry closely and have a unique understanding of the needs of our customers. Over the years the industry has become fragmented into more diverse, niche operators with highly individual requirements. Unlike other yarn processors we have continued to widen the capabilities of our processes and increase the range of product specifications we offer .

We believe that this commitment enables us to provide vital support to our customers who continually need to innovate to remain competitive.

The best equipment for the job

Orbital has remained committed to continuously investing in the newest technology and production techniques. This strategy of maintaining a leading edge capability in our core business allows us the flexibility and versatility to offer the widest available range of product and process options. This process and product capability can be combined and refined to create truly bespoke yarn products designed to meet the specific needs of your business.

The best people for the job

As well as technical innovation we focus on recruiting the most experienced and knowledgeable people in the business. We focus on continuously improving every aspect of the production and customer service processes.

The best service available

Given the demands of today‚ textile market, we understand the importance of providing fast responses to customer enquiries, offering flexible supply options and minimizing order turnaround times. Our investment in people and flexible production processes enable us to meet all three of these challenges without compromising the quality and performance of our products.



OUR BUSINESS ACTIVITIES:

Orbital is a professional supplier in different kinds of Textile Fine WiresFibersYarns, and Threads made of Stainless SteelSilverCopper and Silver Quoted Cooper.

So Orbital is a reliable source for components of:

-anti-static yarns and fabrics,

-conductive yarns and fabrics,

-anti-bacterial yarns and fabrics,

-anti-electromagnetic shielding yarns and fabrics,

-thermal resistant yarns and fabrics,

-yarns and fabrics for fashion and decoration,

-ribbons and fabrics for data transfer.

-heat and fire resistant sewing threads,

-heat and flame retardant fabrics,

Textile Fine Wires (Monofilaments):

*Stainless Steel Textile Wires - diameters ranging from 0,020 to 1,00mm (In Grade AISI 304/316L)

*100% Copper Textile Wires  - diameters ranging from 0,010 to 1,00mm

*Silver Quoted Copper Textile Wires- diameters ranging from 0,010 to 1,00mm

Stainless Steel (Multifilaments):

AISI 304/316L grade Stainless steel fiber and stainless steel fiber products, silver fibers and silver fiber products consist of fiber into as thin as 2 (mic) micrometer, and different products made by stainless steel & silver fiber such as, stainless steel or silver fiber blended yarns and threads, stainless steel fiber fabric, silver fabric, conductive yarn, and other anti-static products, anti-bacterial, electromagnetic shielding yarns and fabrics.

Orbital is a twisting company for:

Anti-static, Conductive, Electromagnetic Shielding, Antibacterial Blended Yarns and Threads:

Orbital has remained committed to continuously investing in the newest technology and production techniques. This strategy of maintaining a leading edge capability in our core business allows us the flexibility and versatility to offer the widest available range of product and process options. This process and product capability can be combined and refined to create truly bespoke yarn products designed to meet the specific needs of your business.

Thanks to its variety of twisting machinery park Orbital creates different plies with different yarn functional and technical yarn and thread compositions according to customers requirements

Such as :

*Cotton + Stainless Steel Textile Wires (or *Cotton + Copper - Silver Wires)

*Viscose + Stainless Steel Textile Wires (or *Viscose + Copper - Silver Wires)

*Polyester + Stainless Steel Textile Wires (or *Polyester + Copper- Silver Wires)

*Wool + Stainless Steel Textile Wires (or *Wool + Copper- Silver Wires)

Heat-Resistant Sewing Threads:

Cottinox is a high temperature fire resistant sewing thread made of V2A Stainless Steel Cord Core covered by flame resistant finish COTTON

Kevinox is a high temperature fire resistant sewing thread made of Stainless Steel Core

for wide range of technical covered by KEVLAR

for wide range of technical applications.

High Tenacity Industrial  Yarns and Threads

-High Tenacity Polyester Yarns and Threads

-Nylon (Polyamide) Yarns and Treads,

-Teflon Yarns,

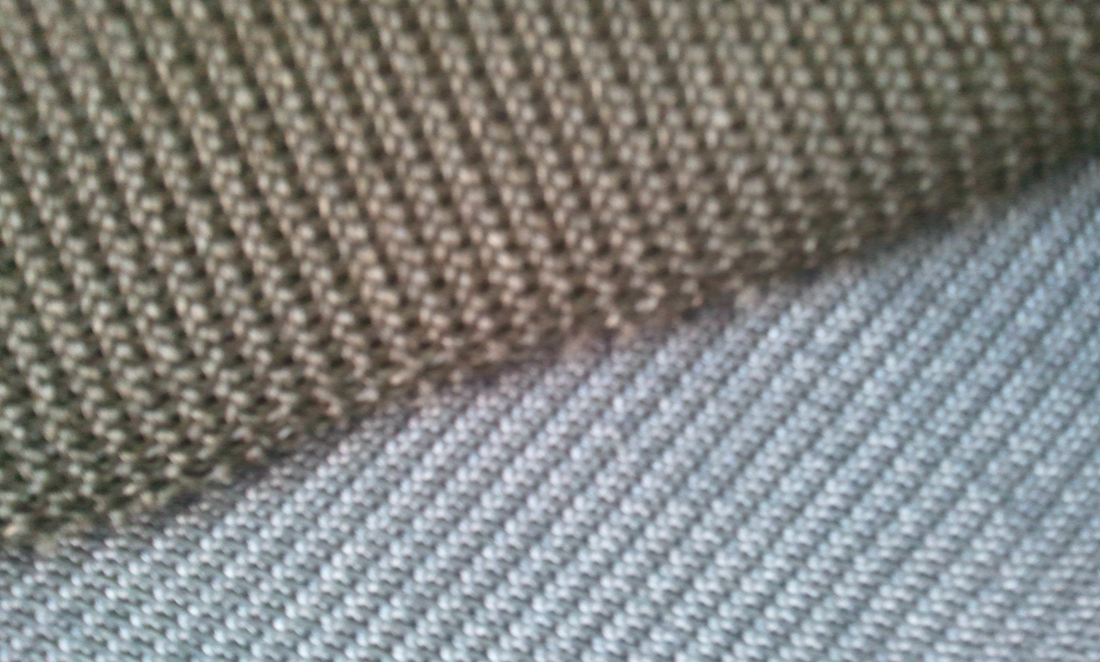

Pure 100% Metal Fiber Fabrics

-Knitted Pure Metal Fabrics

-Woven Pure Metal Fabrics

-Silver Quoted Fabrics



PRODUCTS

Features :

-Anti-Static Effect
-Anti-Electromagnetic Effect
-High tensile strength
-High corrosion resistance

Applications :
-Screens,
-Filters-Medical devices
-Decoration
-Fabrics-Jewelry
-Textiles

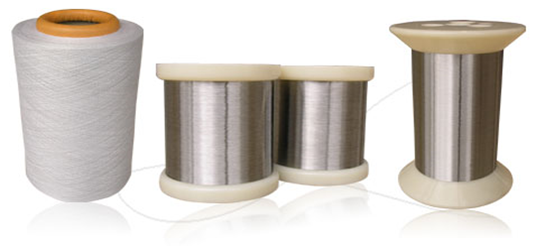

Diameters : Stainless Steel Wires are Available in Diameters from 0,010mm to 0,10mm
(from 10Micron to 100Micron) on several types of spools as per customer request.



Enameled Copper Wires (Cu)

Copper is a malleable and ductile material with  excellent conductivity.Copper portion(99.95%)which enables us to supply ultrafine wire down to a diameter of 10 microns. Copper magnet wire is available in diameters from 0.010mm to 0.500mm with all insulation and self-bonding enamel types.
Besides enameled copper wire, We also supply copper bare wire from 0.010mm to 0.20mm.We also offer enameled stainless steel wire in a wide variety of colors.
Features :
-High Conductivity
-Anti-Electromagnetic Effect
-High solderability
-High ductility

Applications :
-Industrial electronics
-Automotive
-Appliance
-Audio and Video
-Watches
-Computers
Diameters : Copper Wires are Available in Diameters from 0,010mm to 0,10mm
(from 10Micron to 100Micron) on several types of spools as per customer request.

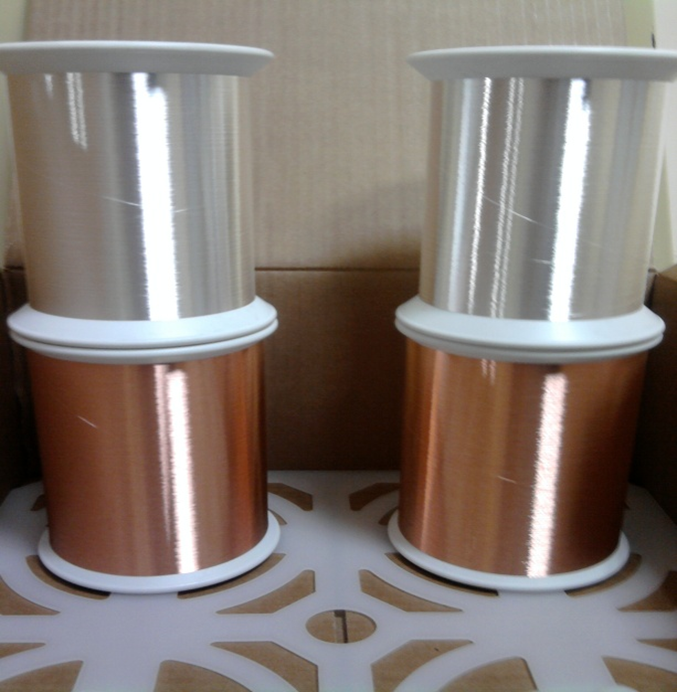

Silver Quoted Copper Wires (Cu/Ag)

Silver plated copper wire is composed of a copper core covered by a concentric silver plating.
This material combines the advantages of copper, such as the conductivity, with the bright
and shiny surface of silver. In addition, the silver coating provides high corrosion resistance.
All these advantages make it the favorite choice for high frequency wire, as well as, colored
textile wire.

Features
-Anti-bacterial
-High Conductivity
-Anti-Electromagnetic Effect
-High solderability
-High ductility

Applications :
-Industrial electronics
-Automotive
-Appliance
-Audio and Video
-Watches
-Computers

Diameters : Copper Wires are Available in Diameters from 0,010mm to 0,10mm
(from 10Micron to 100Micron) on several types of spools as per customer request.



Blended Yarns& Threads Twist Compsition

Twist

Type

Cotton Yarn (Ne)

(+)   (Plus) Stainless Steel Yarn

SINGLE YARN COVERING

http://www.agteks.com/img/chart/01.gif

1

20/1,2,3,4…, plies
30/1,2,3,4…, plies
40/1,2,3,4…, plies
50/1,2,3,4…, plies
60/1,2,3,4…, plies
80/1,2,3,4…, plies

35Mic/0,035mm/1,2,3,4…Plies 40Mic/0,040mm/1,2,3,4…Plies 50Mic/0,050mm/1,2,3,4…Plies







Viscose Yarn (Ne)

(+)     (Plus) Stainless Steel Yarn



MULTI-YARN COVERING

http://www.agteks.com/img/chart/02.gif

2

20/1,2,3,4…, plies
30/1,2,3,4…, plies
40/1,2,3,4…, plies
50/1,2,3,4…, plies
60/1,2,3,4…, plies
80/1,2,3,4…, plies

35Mic/0,035mm/1,2,3,4…Plies 40Mic/0,040mm/1,2,3,4…Plies 50Mic/0,050mm/1,2,3,4…Plies







PolyViscose Yarn (Ne)

(+)     (Plus) Stainless Steel Yarn

HAMEL TWISTING

http://www.agteks.com/img/chart/03.gif

3

20/1,2,3,4…, plies
30/1,2,3,4…, plies
40/1,2,3,4…, plies
50/1,2,3,4…, plies
60/1,2,3,4…, plies
80/1,2,3,4…, plies

35Mic/0,035mm/1,2,3,4…Plies 40Mic/0,040mm/1,2,3,4…Plies 50Mic/0,050mm/1,2,3,4…Plies







Polyester Yarn (Den)

(+)     (Plus) Stainless Steel Yarn

DOUBLE YARN TWISTING

http://www.agteks.com/img/chart/04.gif

4

50Den-75Den
100Den-120Den
150Den-300Den

35Mic/0,035mm/1,2,3,4…Plies 40Mic/0,040mm/1,2,3,4…Plies 50Mic/0,050mm/1,2,3,4…Plies







Nylon Yarn (Den)

(+)     (Plus) Stainless Steel Yarn

MULTI YARN TWISTING

http://www.agteks.com/img/chart/06.gif

5

50Den-75Den
100Den-120Den
150Den-300Den

35Mic/0,035mm/1,2,3,4…Plies 40Mic/0,040mm/1,2,3,4…Plies 50Mic/0,050mm/1,2,3,4…Plies







Acyrilic-Woll Yarn (Nm)

(+)     (Plus) Stainless Steel Yarn

MULTI YARN PARALLEL TWISTING

http://www.agteks.com/img/chart/07.gif

6

1/12-1/18-1/28
1/30-1/32-1/35
1/40-1/48-1/50

35Mic/0,035mm/1,2,3,4…Plies 40Mic/0,040mm/1,2,3,4…Plies 50Mic/0,050mm/1,2,3,4…Plies







Kevlar-ParaAramid Yarn (Nm)

(+)     (Plus) Stainless Steel Yarn

SIRO TWISTING

http://www.agteks.com/img/chart/09.gif

7

1/12-1/18-1/28
1/30-1/32-1/35
1/40-1/48-1/50

35Mic/0,035mm/1,2,3,4…Plies 40Mic/0,040mm/1,2,3,4…Plies 50Mic/0,050mm/1,2,3,4…Plies







Fire Retardant Twaron Yarn (Nm)

(+)     (Plus) Stainless Steel Yarn

SIRO TWISTING

http://www.agteks.com/img/chart/09.gif

8

1/12-1/18-1/28
1/30-1/32-1/35
1/40-1/48-1/50

35Mic/0,035mm/1,2,3,4…Plies 40Mic/0,040mm/1,2,3,4…Plies 50Mic/0,050mm/1,2,3,4…Plies

STAINLESS STEEL FIBER PRODUCTS :

CHARACTERISTICS :
High electrical conductivity, high temperature withstanding, very poor elongation, resistance to chemical corrosion. High density.
APPLICATIONS:
-Signal transfer,
-Thermal conductivity,
-Electromagnetic shielding,
-Filtration, Fashion,
-Sleeves, Felts,
-Braided, Woven and Knitted Materials for Glass Industry.
-Anti-static fabrics,
-Heating yarns,
-Intelligent textiles,
-Reinforcement structures..

OUR POSSIBILITIES :
-Staple fibres ,
-Slivers ,
-Long fiber spun yarn,
-Self-twisted yarn,
-Covered yarn,
-Plied yarns ,
-Sewing thread,
-Insertion of filament.

Blends : Yarns can be 100%, with different alloys or blended with other
fibres like Aramids, Polyester, Nylon, Cotton, Viscose, PVA and others.

Count Range : Nm 15 (667 dTex) to Nm 0.2 (5000 Tex)…
Fiber Diameter : 8, 12, 22, 30µm…
No of Filaments : 35, 50, 80, 100, 150, 200 µm...

Other possibilities on request. We can develop the textile solution depending of the technical requirements of your application.

Cottinox® is a high temperature fire resistant sewing thread made of Stainless Steel Cord Core covered by Flame resistant Finish COTTON for wide range of technical applications.
Cottinox® is resistant to temperatures up to Approx.500-600 °C without high strain and 300 °C with mechanical strain.The cotton cover turns brown core and turns brown at temperatures between180-220°C
(This information is supplied without liability.)

Kevinox® is a high temperature fire resistant sewing
thread made of Stainless Steel Cord Core covered by
KEVLAR for wide range of technical applications



Kevinox® The steel core resists temperatures approx.1100 °C without high strain and approx.600 °C with mechanical strain It is also strong due to the combined effect of the steel core and Kevlar cover.
(This information is supplied without liability.)

Application : Technical use in high temperatures such as steel-electrical and building industries.It is suitable for heat protection against fire, radiation and contact heat,high temperature protective clothing, insulation and sealing in turbines, pumps and power stations. Furthermore is used in the manufacture of waste gas pipes in automotive industry for anti-static applications, carpets, mats and anti-static clothing.
NOTE : Several kinds of blends with cotton & Kevlar with Stainless Steel Core can be produced as per Customer Requests .
PACKING :
Article No: 9-050-320 - CONES-KING CONES – 2000mtrs
Article No: 9-050-430 - CONES-KING CONES – 2000mtrs

What is Aramid Fiber ?
The term Aramid is the abbreviation of “ Aromatic Polyamide”. Aramids are mainly artificial high performance synthetic fibers and known as composite materials. Specific Tensile Strength of Aramid Fibers are 5 times greater than Steel Products.
Due to their negative Thermal Expansion Coefficient, Aramid Fibers provides benefits for environments of which heat propagation is important.
Features of Aramid Fibers, Yarns & Threads :
Some general characteristics that distinguish Aramids from other synthetic fibers are :
-High Durability,
-Good tear resistance,
-Organic solvents-away,
-Non-conductive,
-High melting point (500 ° c above), Heat Resistant,
-Low Flammability, Flame Retardant,
-High Temperature, Reliable Fabrics,
-Low elasticity at Breaking Point
-Light Weight and High Strength
Types of Aramid Fibers :
There are two types of Aramid Fibers known as Para-Aramids & Meta-Aramids.
The most commonly used aramid fiber yarns and threads are :



Para-Aramids

Meta-Aramids

Kevlar (Du-pont)

Nomex (Du-Pont)

Technora (Teijin)

Teijinconex (Teijin)

Twaron (Teijin)

Kermel

Vectran

New Star (Yantai)



Our Capabilities for Aramid Yarns and Threads :
Our Aramid Yarns and threads for Weaving, Knitting and Sewing are guarantee of extreme technical performances in tenacity, abrasion, resistance to temperature, UV and chemical resistance.
The transformation of yarns, available in a standard and tested range, starting from fibres of the best quality arising from the collaboration of Fiberinoks with the main international producers of fibers, is developed and implemented based on the specific needs and applications of customers up to the creation of exclusive yarns.
Applications :
· Packing and seals
· Concrete reinforcement
· Manholes
· Conveyor belts for glass industry
· Medical
· Automotive
· Industrial Yarns, Threads for Woven and Knitted Fabrics,
· Protecting Clothes, Cut and abrasion resistant Gloves,
· Military ballistic vests and helmets,

Some examples of standard long stretch breaking yarns and corresponding
counts, available for prompt delivery:

Kevlar® by Fiberinoks Technology
Yarns and Sewing threads in yellow and black:
NM50/1–NM 50/2 – NM 50/3 – NM 50/4 – NM 100/2
Continuous filament in yellow colour:
DTEX 440/2 – DTEX 440/3

Nomex® by Fiberinoks Technology
Yarns and Sewing threads in raw and dyed colour, on request:
NM 40/3 – NM 60/3 – NM 70/2 – NM 100/2

Twaron® by Fiberinoks Technology
Sewing threads in yellow colour:
NM 50/2 – NM 50/3 – NM 50/4

Dyneema® by Fiberinoks Technology
Sewing threads in white colour:
NM 50/2 – NM 50/3 – NM 50/4

NOTE :

*Other counts available on request.
*Several kinds of plies and blends with Cotton, Polyester, Nylon, Stainless Steel Core can be produced as per Customer Requests .
PACKING:
Standard packing: cones from 1 kg or king spools of different lengths. For any new development in co-designing, the Research & Development and Sales Offices of FILTES are at your full disposal.
*Kevlar® e Nomex® by DuPont – Twaron® by Teijin Aramid – Dyneema® by DSM

High Tenacity Low Elongation Low Shrinkage Polyester Filament Yarns

High Tenacity Low Shrinkage Polyester Filament Yarn ranging from 56dtex to 555dtex, which are widely applied to produce core spun thread, high strength sewing thread, textile, coated fabric, tent, net, rope, safety belt and advertising canvas etc. Yarn Counts From Den50/1 up to Den500/1 Technical Specifications : Counts from Den50/1-2-3 Plies up to Den500/1-2-3 Plies.



Breaking Tenacity

Elongation at Break

Hot Air Shrinkage (2 min,177ºC, 0,05N/Dtex)

Group I

8.2 ± g/d

7,24 CN/Dtex

13.5±1.5

1.8±0,5

Group II

8.0 ± g/d

7,06CN/Dtex

16±2.0

2.0±0,5



Embroidery Sewing Threads :

Our premium Twisted Polyester Embroidery Thread.   Brilliant colors with a high sheen stitch appearance. Made from high tenacity tri-lobal polyester. Good sewability and seam performance. Superior color fastness. Available in white colour.

Size Ply Strength Application
Ticket 40 D50/2-D70/2-D120/2 2.9 lbs (1,315 grams) For all embroidery applications





APPLICATIONS :

Sewing Threads :
embroidery, outdoor fabrics, awnings, banners, flags, outdoor signs, braided cords, leather goods, shoes, technical textiles and apparel.
Automotive:
safety belts, harnesses, air bags and air curtains and air bag inflator hoses.
Quoted Fabrics
marine fabrics, sailcloth, roofing, awnings, canopies, upholstery, furniture, tents,
tarps and slewing.
Engineering Reinforcements :
automotive power transmission and synchronous belts; industrial and commercial conveyor belts; V-belts and poly-rib belts; both heavy- and light-duty water and general hydraulic hoses; industrial tubing; high stress automotive hoses; and air springs.
Geo-Textile & Geogrid : retaining walls; shoreline protection; road construction; residential and commercial construction; sludge containment; landscaping; and drainage and erosion control.
Narrow Fabrics : cargo tie down wraps, slings, tow straps, pressure-sensitive adhesive tape, luggage, animal restraints and pull tapes for conduit threading.
Rope and Cordage : boating/marine lines and rigging; heavy-duty offshore mooring lines; commercial fishing lines and netting; sports and recreation equipment; and everyday household uses.

Pure Metal Knitted Fabrics for Burners

Main Purpose:
Full premix surface combustion fuel gas burners

Component : FeCrAl

Charactesistics:
1. Low contamination emissions: emission rates of Nox and CO are very low to ppm level.
2. Economize on energy: This product is used in full premix burner, with high combustion efficiency and low smoke evacuation loss.
3. Well adaptability of appearance: metal fiber burners can be made into various shapes, according to the demand of using situation.
4. Excellent performance of resistance to thermal shocks: it is manufactured by 100% metal fibers, soft and resists thermal shocks.
5. Well safety: fine holes of metal fiber media determine that the flashback trendency of the metal fiber burners is very low.
6. Wide adjustable range: metal fiber burners have a big combustion intensity adjustable range (100~10 000 kW/rn2).

Product Specifications

Thickness (mm)

1.8-3.45 (± 0,10)

Adjustable according to customer demand

Air Pemeability (cc/mm²s)

300-400 (± 30)

Adjustable according to customer demand

Weight (Kg/m²)

1.2 (± 0.1)

Adjustable according to customer demand

Usage Temperature (ºC)

< 1100ºC

Maximum Temperature 1250 ºC



CONTACT US



Oruç Reis Mahallesi, Tekstilkent İş Ticaret Merkezi, G1–Blok No: 291, / Esenler – İstanbul - TÜRKİYE

Phone: +90212 438 23 83 Fax: +90212 438 23 82

Email: info@fiberinoks.com | orbital_ltd@yahoo.com

Orbital Dış Tic. Ltd. Şti. | Phone: +90212 438 23 83 Fax: +90212 438 23 82

Oruç Reis Mahallesi, Tekstilkent İş Ticaret Merkezi, G1–Blok No: 291 / Esenler – İstanbul - TÜRKİYE
